Metal sealed ball valve - Stainless steel ball valve Q41H

Update: 2016/11/21??????View:

Brand: ???GONGKAI
Type: ???Q41H

Introduction

Q41H hard sealed ball valve is suitable for various pipelines ranging from Class 150 to Class 2500 and PN16 to PN160, and is used to cut off or connect media in pipelines. By selecting different materials, hard sealed ball valves can be applied to various media such as non corrosive media, weakly corrosive media, nitric acid, acetic acid, oxidizing media, urea, etc., especially suitable for harsh working conditions such as solid particle media, slurry, coal powder, ash, etc.
The driving mode of hard sealed ball valves is manual, worm gear transmission, pneumatic or electric. Metal hard sealed ball valves are generally connected by flanges, but can also be connected by butt welding.

The ball and valve seat of the metal hard sealed ball valve are completely sealed using a metal to metal sealing method. In order to ensure reliable sealing of the hard sealed ball valve at various temperatures and pressures, various advanced hardening techniques for the ball and valve seat can be used according to the different usage conditions and requirements of users, including supersonic spraying, nickel based spraying welding, surface special hardening, hard alloy spraying welding, etc. The surface hardness of the ball and valve seat can generally reach HRC60 or above, and higher can reach HRC74 or above. The temperature resistance of the sealing surface material can reach 540 ℃, and the higher can reach 980 ℃. The bonding strength of the metal hard sealed flange ball valve material can reach over 10000 PSI, and the sealing surface material also has good wear resistance, impact resistance and other properties. Hard sealed fixed ball valves are suitable for the vast majority of harsh working conditions.
The sealing surface of Q41H hard sealed ball valve adopts a metal to metal sealing structure, the packing adopts flexible graphite, and the gasket adopts a stainless steel+flexible graphite structure. Therefore, valves can ensure reliable sealing even in the event of a fire. Hard sealed ball valves have a natural anti-static structure design.

Q41H Metal Sealed Ball Valve Main Component Materials

閥體 Body	304	ZG1Cr18Ni9Ti	CF8	CF3	ZG1Cr18Ni12Mo2Ti	CF8M	CF3M
球體閥桿 Ball Stem	304	1Cr18Ni9Ti	304	304L	1Cr18Ni12Mo2Ti	316	316L
閥座 Seat	-29℃～550℃(金屬)
墊片 Shim	不銹鋼/柔性石墨Stainless Steel/flexible Graphite 齒形墊片Tooth Profile Gasket
閥桿座 Stem Seat	不銹鋼/柔性石墨 Stainless Steel/Flexible Graphite
填料 Packing	增強柔性石墨 Enhanced Flexible Graphite
填料壓蓋 Gland		1Cr18Ni9Ti	304	304L	1Cr18Ni12Mo2Ti	316	316L
溫度 Temperature	-29℃～300℃(對位聚笨 PPL) -29℃～550℃(金屬硬密封)
介質 Medium	水蒸汽油品氣體 Water steam Oil goods	泥漿，沙粒，礦漿，渣漿		強氧化介質 strongey oxidable medium	醋酸類 Acetic Acid		尿素類Urea

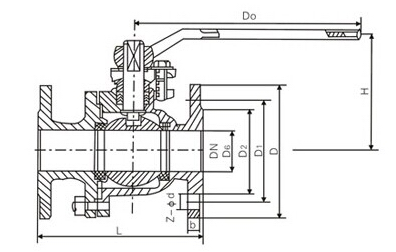

Q41H metal sealed ball valve main zero shape and connection dimensions

1.6MPa	DN	L	D	D1	D2	b	n-φd	H	D0
RF Q41H 16C 16P 16R	15	130	95	65	45	14	4-14	78	140
	20	140	105	75	55	14	4-14	84	160
	25	150	115	85	65	14	4-14	95	180
	32	165	135	100	78	16	4-18	150	250
	40	180	145	110	85	16	4-18	150	300
	50	200	160	125	100	18	4-18	170	350
	65	220	180	145	120	20	4-18	195	350
	80	250	195	160	135	20	8-18	215	400
	100	280	215	180	155	20	8-18	250	500
	125	320	245	210	185	22	8-18	265	600
	150	360	280	240	210	24	8-23	270	800
	200	400	335	295	265	26	12-23	330	1200
2.5MPa	15	130	95	65	45	16	4-14	103	140
RF Q41H 25 25P 25R	20	140	105	75	55	16	4-14	112	160
	25	150	115	85	65	16	4-14	123	180
	32	165	135	100	78	18	4-18	150	250
	40	180	145	110	85	18	4-18	156	300
	50	200	160	125	100	20	8-18	172	350
	65	220	180	145	120	22	8-18	197	350
	80	250	195	160	135	22	8-23	222	400
	100	280	230	190	160	24	8-23	253	500
	125	320	270	220	188	28	8-25	275	600
	150	360	300	250	218	30	8-25	286	800
	200	400	360	310	278	34	12-25	340	1200
