Angle Globe valves角式截止閥J44H/Y/W
Update: 2016/11/21??????View:
- Brand: ???GONGKAI
- Type: ???J44H,J44Y,J44W
Introduction
Angle globe valve is a type of globe valve with an inlet and outlet angle of 90 ° C. In addition to the advantages and usage requirements of general flange globe valves, the biggest feature of this valve is that it is easy to install at the corners of pipeline systems, saving 90 ° C elbows and facilitating opening and closing operations. The flange angle globe valve is widely used in the synthetic ammonia system and refrigeration system of fertilizer plants.
角式截止閥是一種進口和出口呈90°C夾角的截止閥，這種閥門除了具備一般法蘭截止閥的優點和使用要求外，最大的特點就是方便安裝在管道系統的拐角處，既節省了90°C的彎頭，又方便開閉操作。法蘭角式截止閥在化肥廠的合成氨系統和制冷系統中等到非常廣泛的應用。
J44H angle globe valve is only suitable for fully open and fully closed, and is not allowed to be adjusted or throttled. Globe valves belong to forced sealing valves, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface not to leak. When the medium enters the valve below, the resistance that the operating force needs to overcome is the frictional force between the valve stem and the packing, as well as the thrust generated by the pressure of the medium. The force required to close the valve is greater than that required to open it, so the diameter of the valve stem should be larger, otherwise the failure of the valve stem bending may occur.
J44H角式截止閥只適用于全開和全關，不允許作調節和節流.截止閥屬于強制密封式閥門，所以在閥門關閉時，必須向閥瓣施加壓力，以強制密封面不泄漏。當介質下方進入閥門時，操作力所需克服的阻力，是閥桿和填料的摩擦力與由介質的壓力所產生的推力，關閥門的力比開閥門的大，所以閥桿的直徑要大，否則會發生閥桿頂彎的故障。
Main performance specifications for J44H angle globe valve
|
|
STANDARD |
| design and manufacturing | GB12233/GB 12235 |
| Structure length | GB 12221/JB96（長系列） |
| 結構長度 | GB78/JB79（GB、HG、SH） |
| Pressure test | GB/T 13927 |
| Mark | GB 12220 |
|
|
|

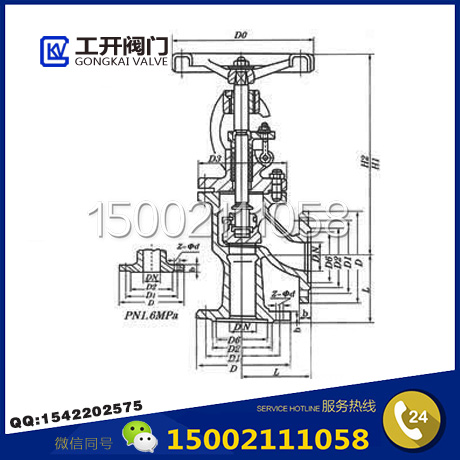

Main appearance and connection dimensions of J44H angle globe valve
| 1.6MPa | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | in | L | D | D1 | D2 | f | b | z-φd | Do | H1 | H2 | W |
| 15 | 1/2 | 65/90 | 95 | 65 | 45 | 2 | 14 | 4-φ14 | 100 | 240 | 265 | 7 |
| 20 | 3/4 | 75/95 | 105 | 75 | 55 | 2 | 16 | 4-φ14 | 100 | 245 | 270 | 7.5 |
| 25 | 1 | 80/100 | 115 | 85 | 65 | 2 | 16 | 4-φ14 | 120 | 250 | 275 | 8.5 |
| 32 | 21/4 | 95/105 | 135 | 100 | 78 | 2 | 18 | 4-φ18 | 140 | 260 | 290 | 12 |
| 40 | 21/2 | 100/115 | 145 | 110 | 85 | 2 | 18 | 4-φ18 | 140 | 290 | 325 | 14 |
| 50 | 2 | 115/125 | 160 | 125 | 100 | 2 | 20 | 4-φ18 | 160 | 300 | 335 | 19 |
| 65 | 21/2 | 145 | 180 | 145 | 120 | 2 | 20 | 4-φ18 | 180 | 355 | 400 | 27 |
| 80 | 3 | 155 | 195 | 160 | 135 | 2 | 22 | 4-φ18 | 240 | 400 | 450 | 42 |
| 100 | 4 | 175 | 215 | 180 | 155 | 2 | 24 | 8-φ18 | 240 | 455 | 495 | 50 |
| 125 | 5 | 200 | 245 | 210 | 185 | 2 | 26 | 8-φ18 | 280 | 530 | 560 | 64 |
| 150 | 6 | 240/225 | 280 | 240 | 210 | 2 | 28 | 8-φ23 | 320 | 605 | 650 | 85 |
| 200 | 8 | 275 | 335 | 295 | 265 | 2 | 30 | 8-φ23 | 360 | 650 | 770 | 155 |
| 2.5MPa | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | in | L | D | D1 | D2 | f | b | z-φd | Do | H1 | H2 | W |
| 15 | 1/2 | 65/90 | 95 | 65 | 45 | 2 | 16 | 4-φ14 | 120 | 245 | 270 | 7.5 |
| 20 | 3/4 | 75/95 | 105 | 75 | 55 | 2 | 16 | 4-φ14 | 120 | 250 | 275 | 8.8 |
| 25 | 1 | 80/100 | 115 | 85 | 65 | 2 | 16 | 4-φ14 | 140 | 260 | 290 | 11 |
| 32 | 21/4 | 95/105 | 135 | 100 | 78 | 2 | 18 | 4-φ18 | 140 | 290 | 325 | 13 |
| 40 | 21/2 | 100/115 | 145 | 110 | 85 | 3 | 18 | 4-φ18 | 160 | 300 | 335 | 18 |
| 50 | 2 | 115/125 | 160 | 125 | 100 | 3 | 20 | 4-φ18 | 180 | 355 | 400 | 31 |
| 65 | 21/2 | 145 | 180 | 145 | 120 | 3 | 22 | 8-φ18 | 220 | 400 | 450 | 39 |
| 80 | 3 | 155 | 195 | 160 | 135 | 3 | 22 | 8-φ18 | 280 | 450 | 495 | 50 |
| 100 | 4 | 175 | 230 | 190 | 160 | 3 | 24 | 8-φ23 | 320 | 530 | 590 | 60 |
| 125 | 5 | 200 | 270 | 220 | 188 | 3 | 28 | 8-φ25 | 380 | 600 | 650 | 75 |
| 150 | 6 | 240/225 | 300 | 250 | 218 | 3 | 30 | 8-φ25 | 400 | 650 | 770 | 98 |
| 200 | 8 | 275 | 360 | 310 | 278 | 3 | 34 | 12-φ23 | 450 | 700 | 850 | 170 |
Statement: All text, data, and images in this article are for reference only. Provide relevant product parameters for inquiry: product name, model, caliber, material, medium, pressure, temperature, connection standard, quantity, etc. If there are special requirements for the product, please also include them in the inquiry. If the usage scenario is very important or the environment is complex, please provide design drawings and detailed parameters as much as possible, and our professional engineers will review and select for you.
Thank you for visiting our company's website http://www.lymenhu.cn If you have any further questions about this product, you can call us and we will provide you with high-quality pre-sales consulting services. Consultation phone: 15002111058; Phone: 021-56051151.
